ضخامت سنج مدل ATG Plus ساخت کمپانی NDT Supply امریکا
ضخامت سنج مدل ATG Plus
ضخامت سنج مدل ATG Plus مناسب برای تحلیل و اندازه گیری ضخامت و خوردگی
کالیبراسیون با هوا بدون نیاز به تست بلوک
کنترل گین ( حساسیت) اتوماتیک AGC
دارای قابلیت B-Scan ، Freeze و Save
محدوده اندازه گیری ضخامت : 0.8 تا 350 mm ، محدوده اندازه گیری سرعت: 650 تاm/s 9999
محدوده تنظیم dB : 12- 52 dB
دارای قابلیت ذخیره B-Scan
نمایش شماتیک خوردگی
بدنه آلومینیومی
دارای محافظ لاستیکی
قابل استفاده در محیط های صنعتی با شرایط سخت
اندازه گیری اتوماتیک سرعت ضخامت و سرعت
دارای قابلیت ارتقای نرم افزاری
دارای نرم افزار گزارش داده
دارای قابلیت ذخیره 128000 داده در 1000 پوشه
دارای خروجی USB
عمر باتری : تقریبا 60 ساعت
وزن : 300گرم
AIR-CALIBRATION DIGITAL THICKNESS GAUGE
The ATG Plus is an advanced ultrasonic thickness gage.
Uses dual element transducer for internally corroded applications, features include thru-coating and echo-to-echo.
It light weight and sunlight bright color LCD display. ATG Plus with large digital, B-scan and many functions.
It’s very good for field thickness corrosion measurement and analysis.
The ATG Plus is built by high impact aluminum housing.
The rubber side protection provides protection for withstanding use in harsh industrial environmental application
 |
|
 |
FEARTURES
– AIR-CALIBRATION WITHOUT TEST BLOCK
– AGC (AUTOMATIC GAIN CONTROL)
– LIGHT WEIGHT AND LARGE DIGITAL DISPLAY
– SIMPLE TO USE
– TRUE COLOR TFT DISPLAY WITH ADJUSTABLE LIGHT INTENSITY
– THICKNESS, VELOCITY, AND TIME-OF-FLIGHT MEASUREMENT
– DIFFERENTIAL MODE AND REDUCTION RATE MODE
– PULSE-ECHO AND ECHO-ECHO THRU-PAINT MEASUREMENT
– SINGLE POINT AND TWO POINT CALIBRATION
– B-SCAN TRACE FREEZE AND SAVE
– AUTOMATIC VELOCITY MEASUREMENT
– LARGE AMOUNT STORAGE MENORY
– SINGLE BOARD PCB DESIGN, RELIABLE AND SOFTWARE UPGRADE EASILY
– EASY SOFTWARE UPGRADE
– 32 BIT WINDOW 7 AND 64 BIT WINDOW 8 REPORT SOFTWARE
– ON/OFF SWITCH CONTROL POWER ON/OFF

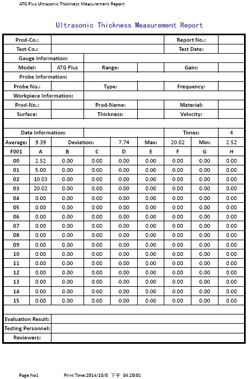

| LARGE DIGITAL DISPLAY | B-SCAN DISPLAY | DATA REPORT |
 |
 |
 |
EAST OPERATOR INTERFACE WITH DIRECT ACCESS TO ALL FUNCTIONS
 |
 |
SPECIFICATIONS
|
DESCRIPTION |
TECHNICAL DATA |
|
OUTSIDE DIMENSION |
120×79×31 (mm) |
|
WEIGHT |
300 g (INCLUDING BATTERIES AND COVER) |
|
OPERATING TEMPERATURE |
-20~45 ℃ |
|
POWER |
THREE 1.5V AA TYPE BATTERIES |
|
POWER ON/OFF |
TRUN ON/OFF BY THE SWITCH |
|
BATTERY LIFE |
APPROX. 60 HOURS |
|
LCD DISPLAY |
320×240 DOT-MATRIC TRUE COLOR TFT SCREEN |
|
PROBE |
DUAL ELEMENT PROBE |
|
MEASURING RANGE |
0.8~350 mm ( DEPENDING OF THE PROBES ) |
|
DIGITAL RESOLUTION |
0.01 mm |
|
OPERATING PPRINCIPLE |
PULSE ECHO WITH DUAL ELEMENT TRANSDUCER |
|
VELOCITY RANGE |
650~9999 (m/s) |
|
PULSER VOLTAGE |
150 V, NEGTIVE PULSER |
|
DB GAIN SETTING |
12-52 dB |
|
UNIT |
inch/mm |
|
V_TEST FUNCTION |
AUTOMATIC VELOCITY MEASUREMENT |
|
V-PASS CORRECTION |
AUTOMATIC CALIBRATION |
|
LANGUAGE |
ENGLISH |
|
DISPLAY MODE |
NORMAL, MIN/MAX CAPTURE, DIFF/PR%, B-SCAN, LARGE DIGITAL DISPLAY |
|
DISPLAY MODE |
DIGITAL, B-SCAN |
|
B-SCAN SAVE |
250 B-SCAN RECORD |
|
MEASURE MENT POINT STORAGE |
128,000 POINTS WITH 1000 FILE NAME |
|
DSIPLAY LIGHT INTENCITY |
ADJUSTABLE 8 STEPS INTENSITY CONTROL |
|
OUTPUT |
USB PORT, 2.0 |
|
REPORT SOFTWARE |
DATA VIEW WITH 32/64 BIT WINDOW SOFTWARE |
WINDOW REPORT SOFTWARE
 |
 |
STANDARD PACKAGE:
 |
–ATG Plus T-GAUGE
-TS510 PROBE
-KY DM-DM CABLE FOR TS510
-USB COMMUNICATION CABLE
-REPORT SOFTWARE
-COUPLANT BOTTLE

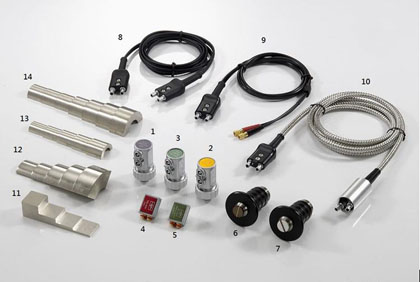

-OPTIONAL PROBES SELECTION
|
 |
1.TS112
2.TS210
3.TS510
4.TS400
5.TS500
6.TS600
7.HT510
8.KYDM-DM5
9.KY DM-DMD-5
10.KY DM-DM HT-5
11.S-4 TEST BLOCK 2.5,5,10,20 mm
12.KY-5S 5 STEP PIPE BLOCK 2.5,5,5,10,20 mm
13.KY-5SM 5 STEP PIPE BLOCK 1,2,3,4,5 mm
14.KY-7S 7 STEP PIPE BLOCK 1,1.5,2, 4, 6, 8, 10 mm
|
|
TYPE |
TS112 |
TS210 |
TS400 |
TS500 |
TS510 |
TS600 |
HT510 |
|
FREQUENCY |
1MHz |
2 MHz |
10MHz |
5MHz |
5MHz |
5MHz |
5MHz |
|
CRYSTAL SIZE |
12 mm |
10 mm |
5 mm |
5 mm |
10 mm |
10 mm |
10 mm |
|
MEASUREMENT |
2-200 mm |
2-250 mm |
0.6-40 mm |
0.8-60 mm |
1.0-350 mm |
2-60 mm |
3-80 mm |
|
TEMPERATURE RANGE |
-10 TO 70 C |
-10 TO 70 C |
-10 TO 70 C |
-10 TO 70 C |
-10 TO 70 C |
-10-150 C |
10-300 C |
|
PROBE |
CABLE PART NO. |
DESCRIPTION |
|
TS112 |
KY DM-DM-5 |
DUAL LEMO 00-LEMO00, 1.5 m |
|
TS210 |
KY DM-DM-5 |
DUAL LEMO 00-LEMO00, 1.5 m |
|
TS400 |
KY DM-DMD-5 |
DUAL LEMO 00-DUAL MICRODOT, 1.5 m |
|
TS500 |
KY DM-DMD-5 |
DUAL LEMO 00-DUAL MICRODOT, 1.5 m |
|
TS510 |
KY DM-DM-5 |
DUAL LEMO 00-LEMO00, 1.5 m |
|
TS600 |
KY DM-DM HT-5 |
ARMORED DUAL LEMO 00-LEMO 00 1.5 m |
|
HT510 |
KY DM-DM HT-5 |
ARMORED DUAL LEMO 00-LEMO 00 1.5 m |
